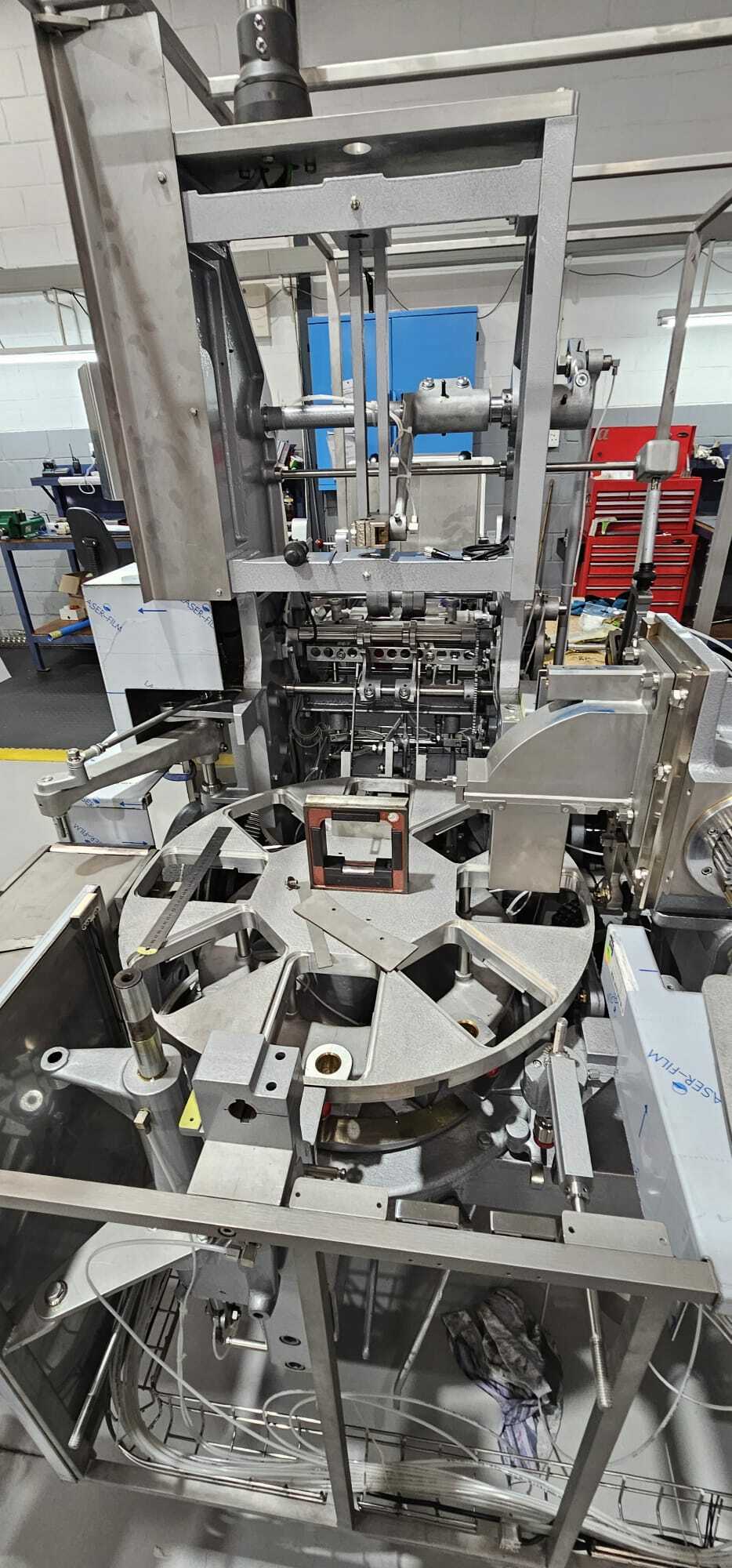

Benhil equipment

Filling and wrapping of butter, margarine, spreads etc.

Butter Margarine Spread Cream cheese Cottage cheese Yeast

Dose volume: from 10 g – 1000 g

Short story of Benhil

Benhil dates back to 1912 and has been on the market for over 100 years as the most reliable, simple and durable filling machine.

Machine description

The packaging material passes through the guide roller and clamping mechanism between knives, which cut a reamer of a certain length; the reamer is fed to the forming matrix. The matrix forms a box and inserts into the nest of the forming carousel. The dispenser fills the box with a certain volume of product, blades wrap the pack valves, and the upper prepressing mechanism gives the briquette its final shape. The finished briquette is pushed out onto the conveyor.

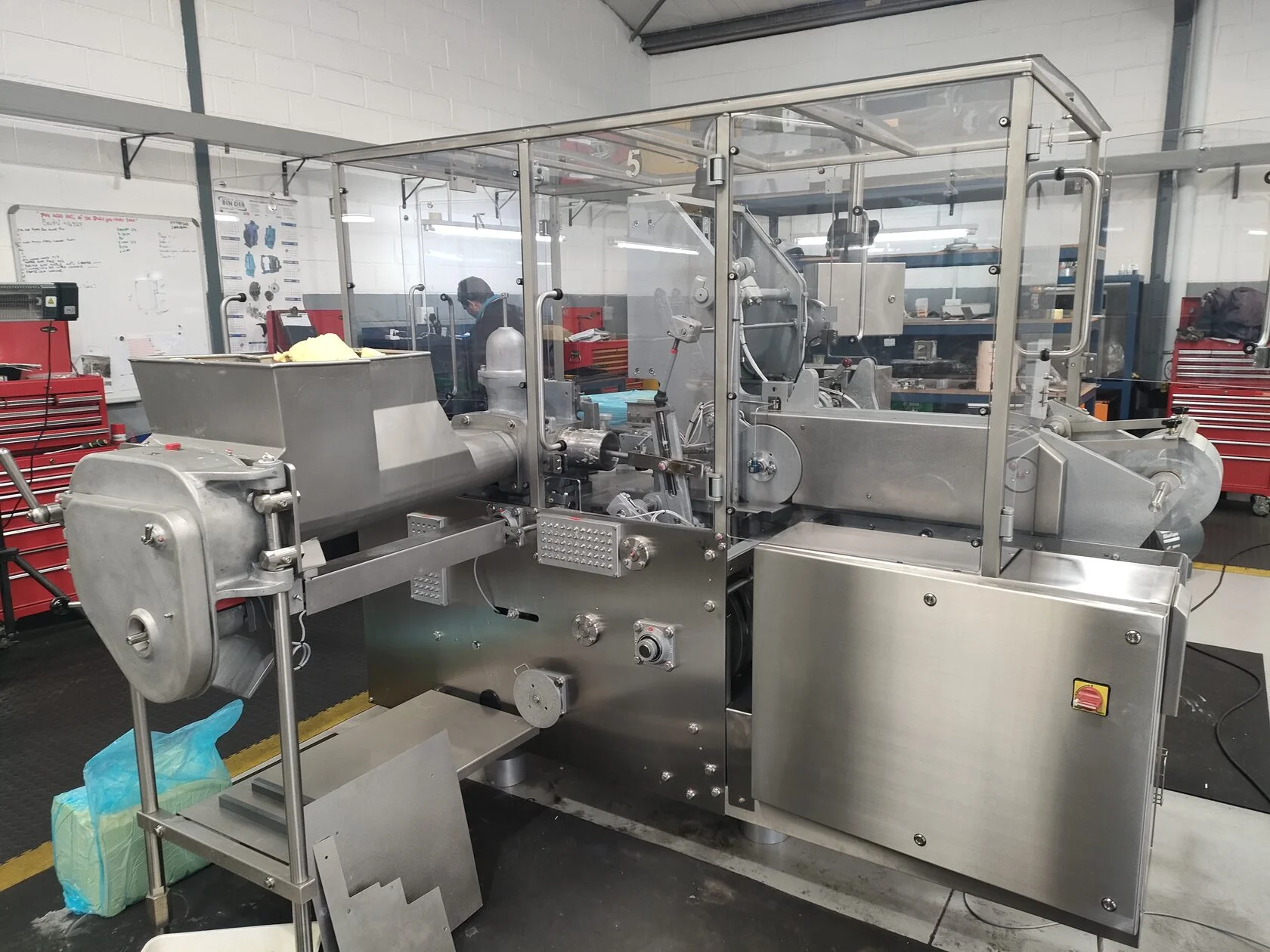

We offer overhauled machines of following makes: Benhil, SIG Ecopack

Benhil Types:

8380	— 50gr to 250gr, capacity up to 80 pcs/min
8345	— 50gr to 500gr, capacity up to 80 pcs/min
8345	— 50gr to 1000gr, capacity up to 80 pcs/min
8362	— 50gr to 250gr, capacity up to 220 pcs/min
Multipack 5000	— 50gr to 500gr, capacity up to 130 pcs/min

SIG Ecopack Types:

Sig FD100	— 50gr to 250gr, capacity up to 100 pcs/min
Sig FD140	— 50gr to 500gr, capacity up to 140 pcs/min
Sig FD165	— 50gr to 250gr, capacity up to 165 pcs/min

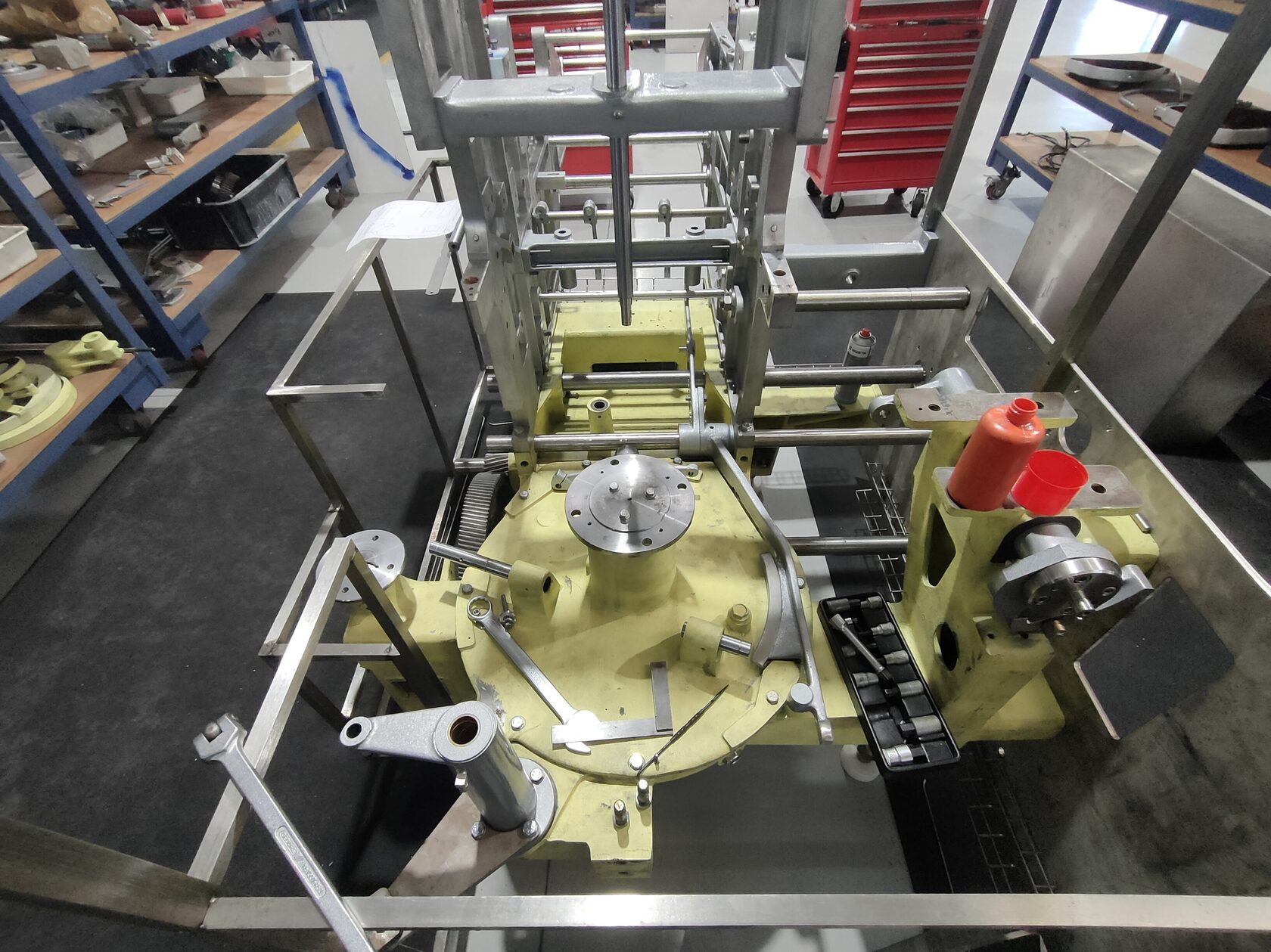

Overhauling process

Complete disassembly of the machine and all components
Defect detection
Sandblasting
New consumables: bearings, bushings, gaskets, liners, seals, etc.
New mechanical components
New original spare parts
New Siemens, Schneider, Jumo electrical components
New Siemens-based control system
New drive motors, frequency converters, servo drives
New Alfa Laval, Burket, Samson valves
New Festo pneumatics
CE marking
New electrical diagrams, component drawings, etc.
On-site testing
Start-up and training

Base machine complete set

Filling machine
Fosovochny complete format
Siemens S7 PLC
Siemens touch panel in Russian (speed adjustment, visualization of errors, etc.)
Alarm systems — current, no material, no product, etc.
Main motor
Wrapping Material Roll Loading/Unwinding Station
Material presence sensor
Wrapping station
Protective transparent panel of the material feeding station
Photo mark for wrapping material centering
Die-cutting station for pushing the reamer of the die-cut into the turntable seat
Standard Circular Transparent Turntable Panel
Basic turntable with slots
UV light
HEPA filter
Sensor for the presence of material in the nest of the turntable (no material, no packaging)
Direct connection with compens

Dosing station
Pack folding elements
Pre-pressing element
Ejector of the finished briquette to the discharge conveyor
Discharge conveyor with transparent cover
Conveyor full sensor
Central lubrication system
Test start-up and final run-in of the machine at the seller's site using the product before shipment
Transport packaging
Export documentation
Loading onto the Buyer's transport
Electrical project
Local control panels (stainless steel Rittal):
Engine control center
Wiring materials
Power cables from cabinets to el. engines
Control cables, pneumatic tubes, fittings, trays, etc.
Documentation
